Oudi Koud
electrical workbench
Draw the building, get the board's single-line diagram, check the calculations and print the electrician's file. Arabic first, with technical terms in French or English.
Windows 10/11 · Free trial · Needs internet for the first launch
What it does

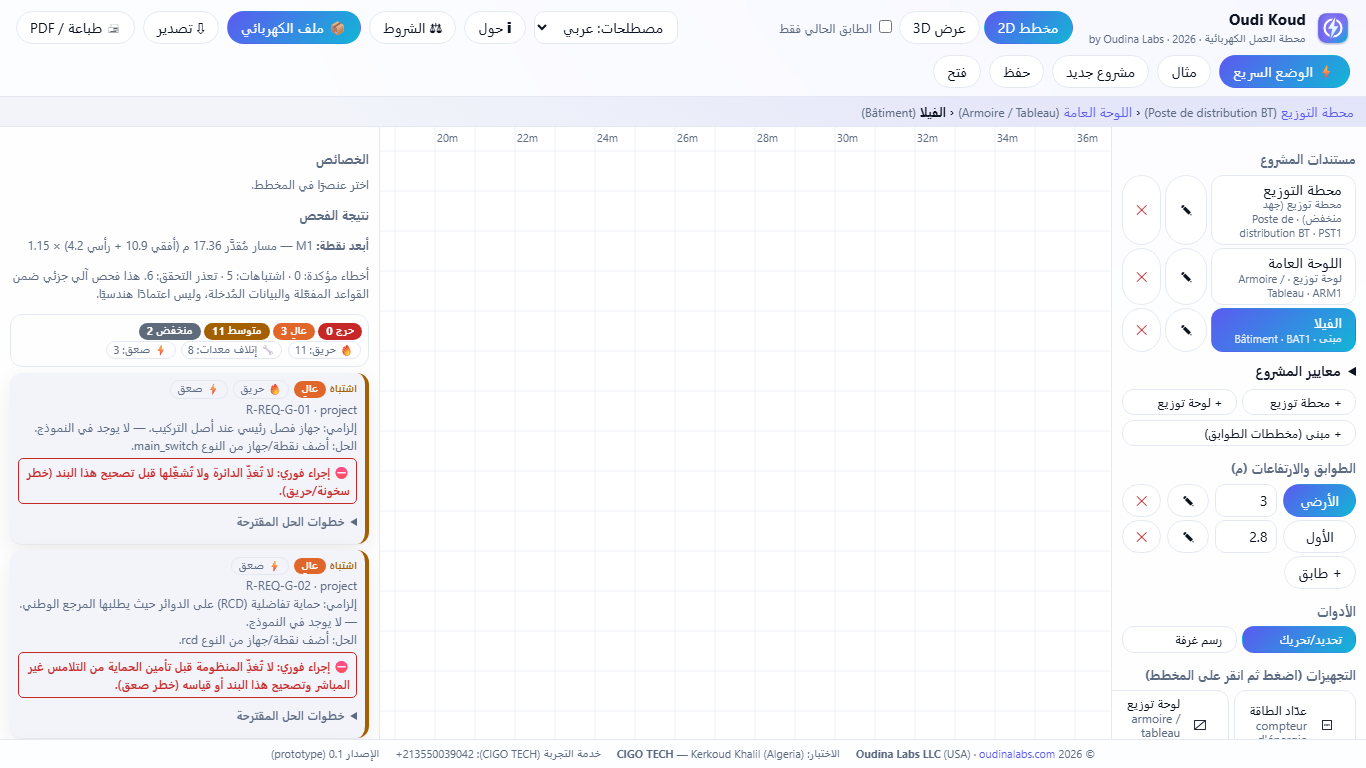

Plan by floors

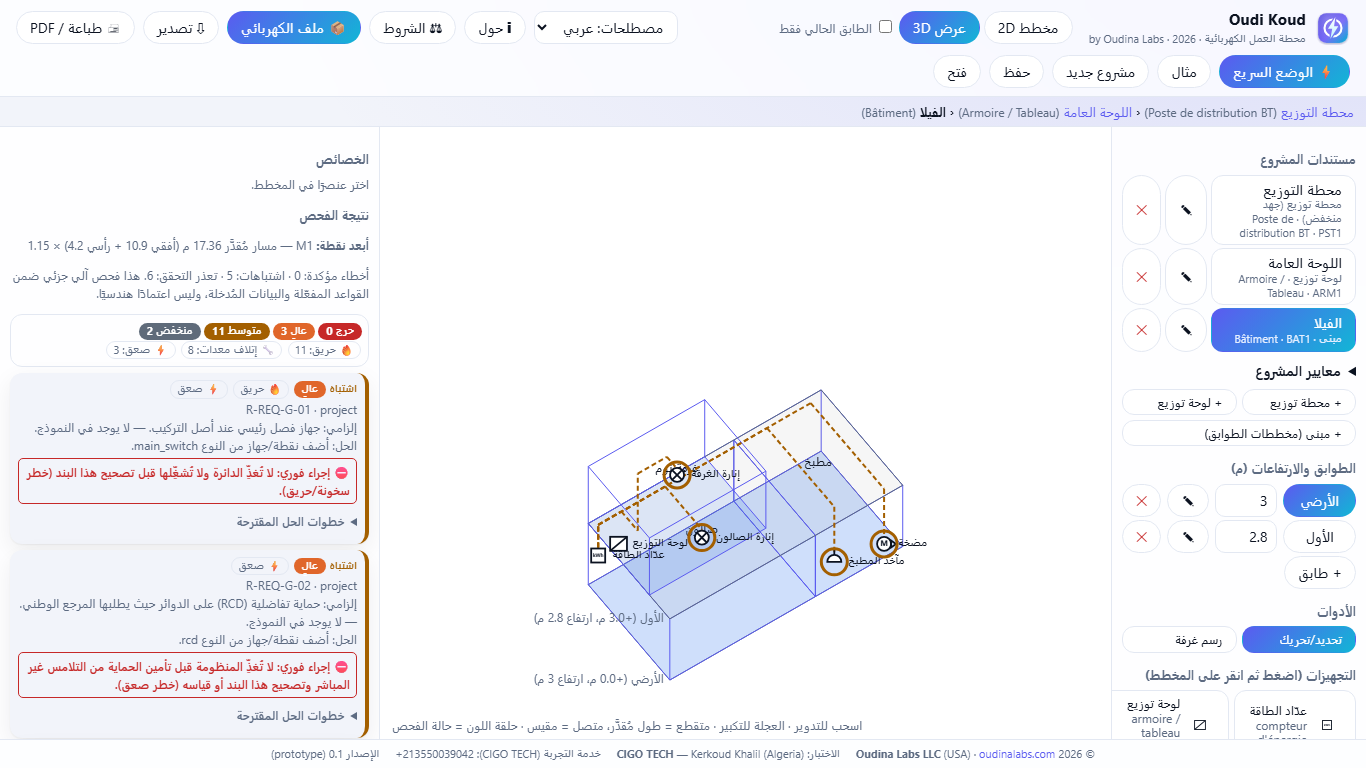

Rooms, sockets, lights and equipment with IEC-style symbols. 2D plan and rotating 3D view; estimated cable routes from the meter to the farthest point.
Substation → board → building

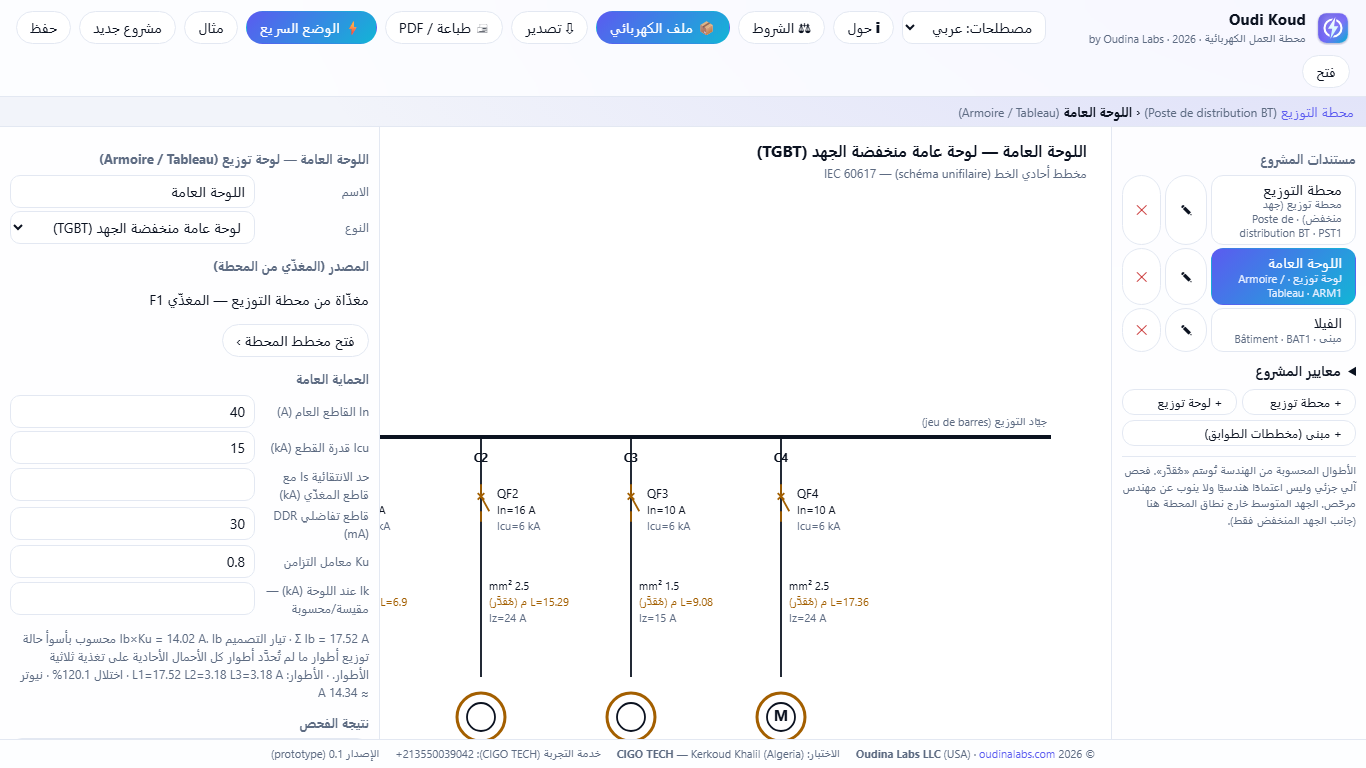

Separate linked documents. Automatic single-line diagram of the board with breakers, cables, loads and results.
Automatic checks

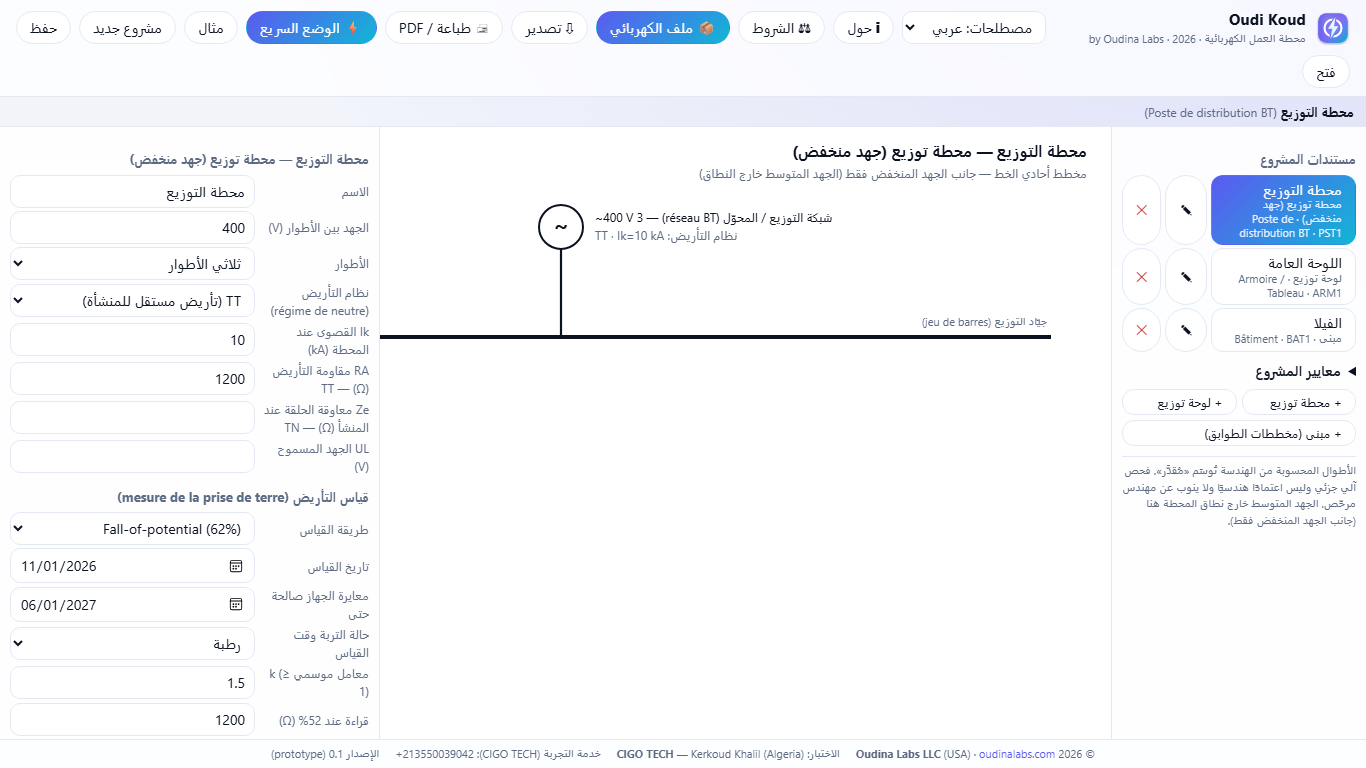

Cable and breaker, voltage drop, breaking capacity, thermal withstand, TT/TN earth fault, earth-electrode measurement, motors, selectivity, phases and PE. Rule-based and partial.
Hazard and fix for every finding
Hazard type, severity, a ready-made fix and an immediate action when it matters. No finding never means "safe".
Hand-over documents

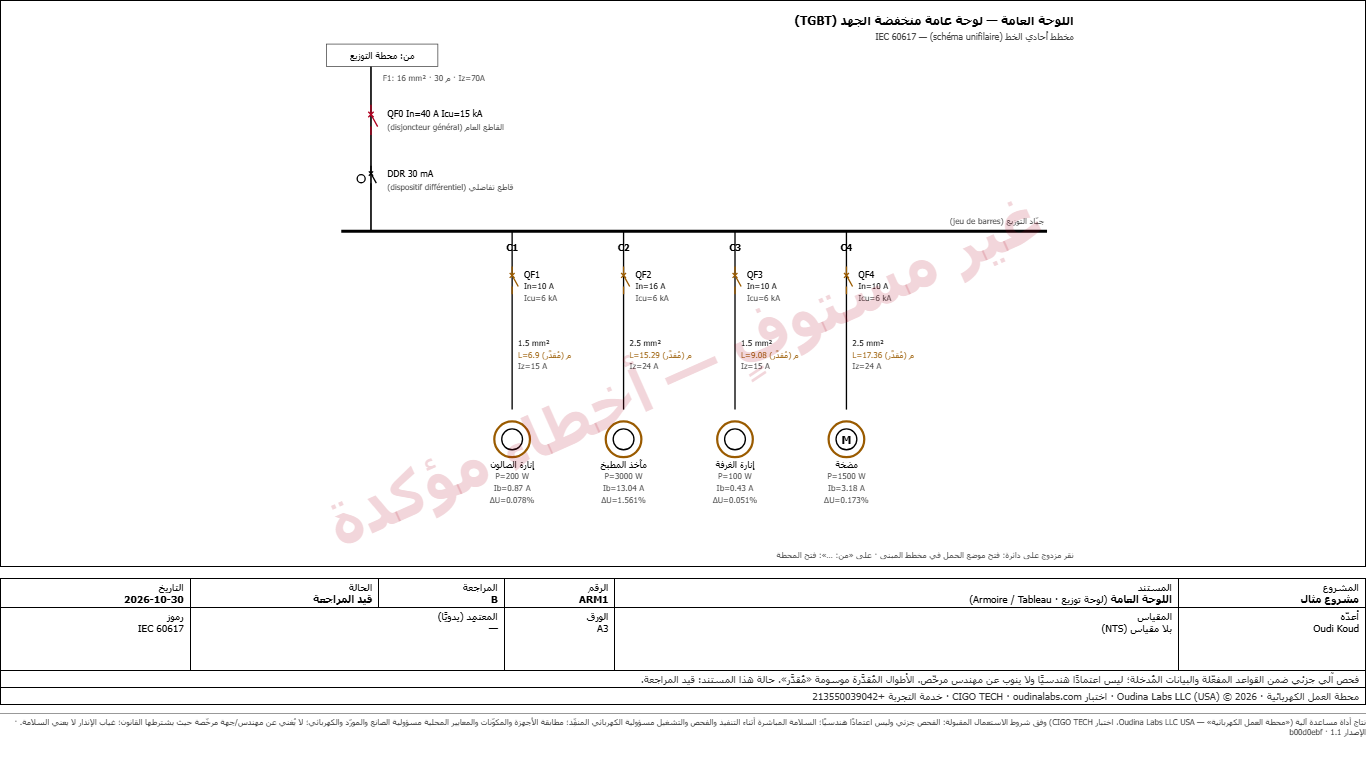

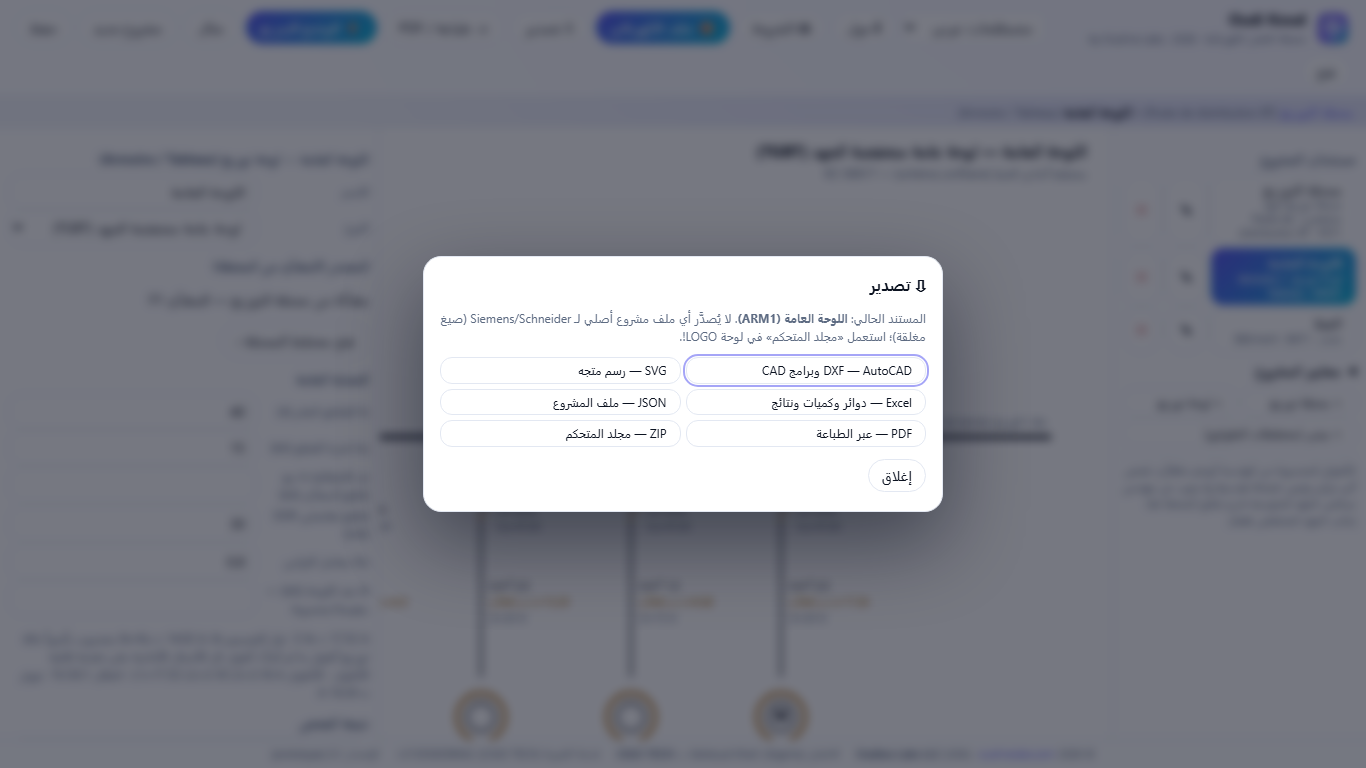

Vector PDF with title block, circuit schedule, commissioning test sheet, labels and bill of quantities. Export DXF, Excel, SVG and JSON.
Controller folder (LOGO! and others)
I/O table, build sheet, IEC 61131-3 Structured Text, ladder listing, test vectors. Review an existing block list and get suggested fixes.
Arabic first, workshop ready
Arabic interface with French or English technical terms and units. Works offline after its first online version check (it re-checks about every 12 hours when online); your files stay on your PC.
Screenshots
Information
Privacy
Your projects stay on your PC. The app's only contact with us is a signed version check (your IP address is visible to our host). No cookies, analytics, ads or session recording.
